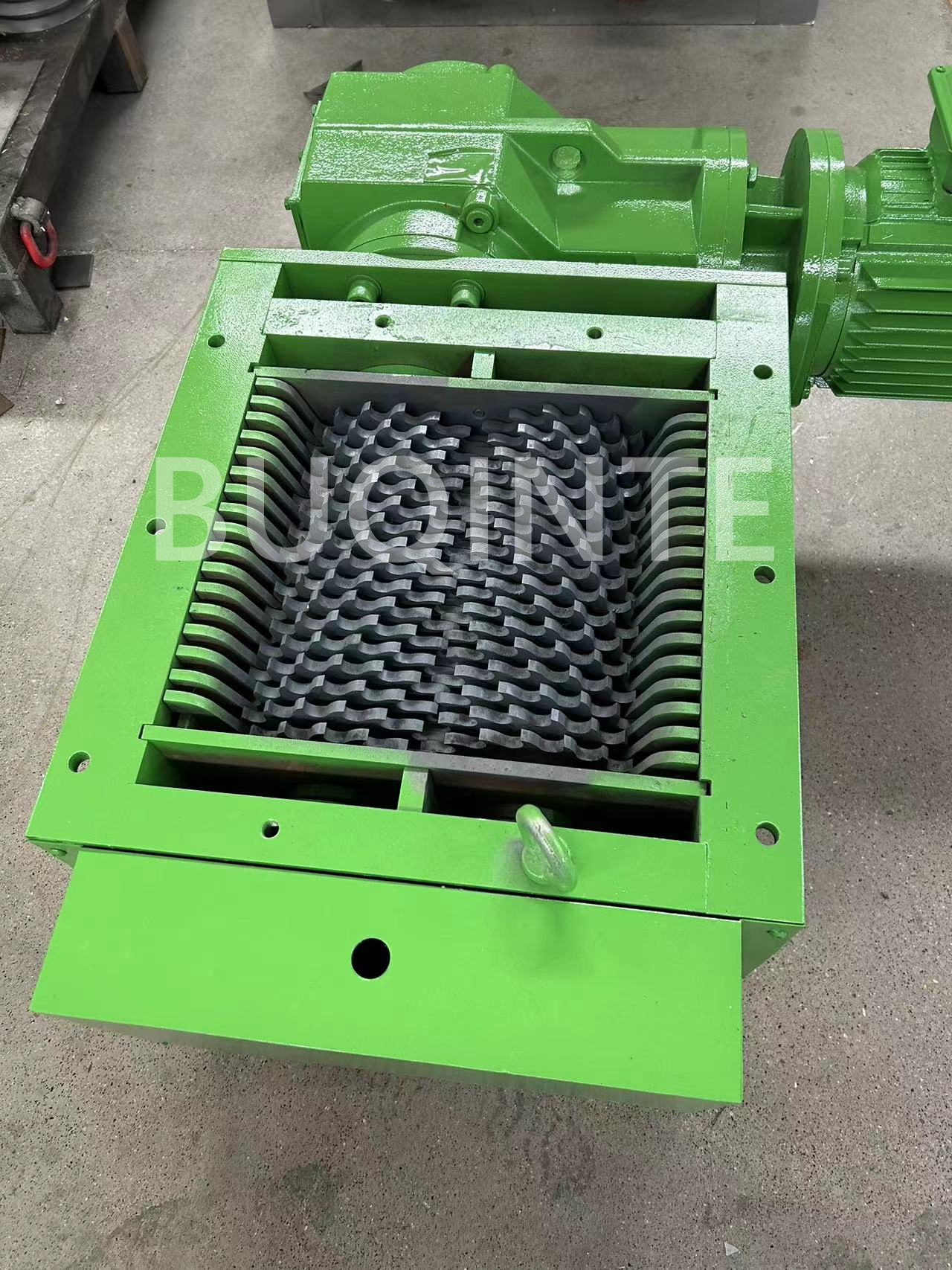

Shredder case and shredder blade.

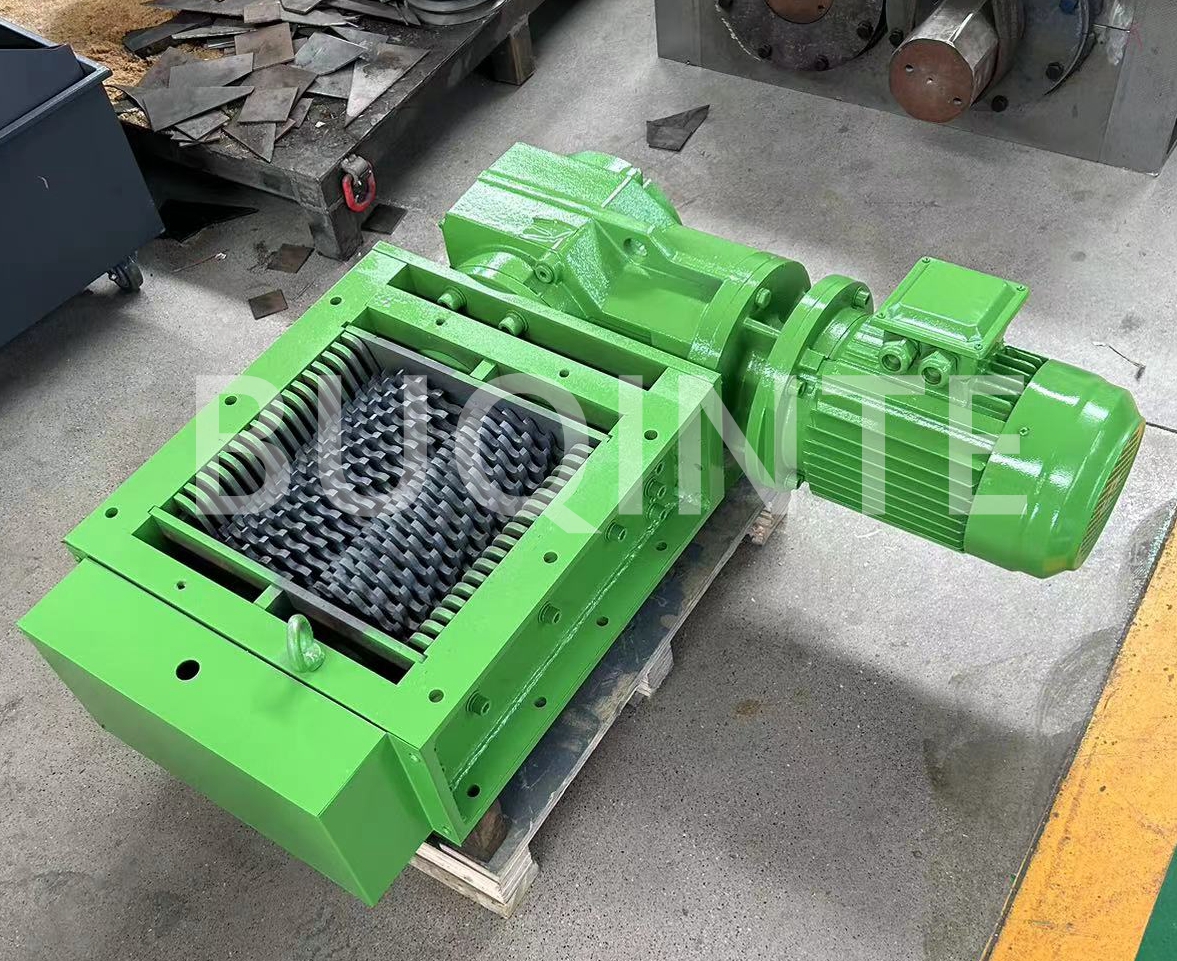

Double shaft shredder is mainly composed of reducer (with torsion arm), gear, shaft, blade, cutter head, etc., shredder body is welded with steel plate, the base adopts I-steel welded frame structure, firm and reliable.
The torque transmission between the reducer and the shaft A and the shaft B is realized by the gear, which has the advantages of compact size, smooth transmission, high reliability and long life, and is suitable for high temperature, wet, dusty and corrosive environment.
The whole blade is made of 45# carbon structural steel wire cutting. After heat treatment, the whole blade has enough strength and wear resistance. The tip of the tool is made of W6Cr5Mo4Vi (6542) high-speed tool steel, which is connected with the cutter head by screws after heat treatment, so as to facilitate disassembly and replacement. There are 5 blades on each blade, so that the material can be fully shredded after entering the shredding chamber, and improve the working efficiency of the shredder.
In the shredder blade, divided into single-axis shredder blade and multi-axis shredder blade. From its classification, we can know that the shredder blades of different axes have different shapes, appearances and even uses and performance, and the multi-axis shredder blades also have four axes and six axes. Different production situations require different types of blades, even if the two-axis blade is selected, it is necessary to measure the size and material. In the purchase of double-shaft shredder blade, depending on the production situation, select a specific size. If the non-standard size, you can also customize a certain specification of blade through the market. In general, the blades need to be customized or purchased in batches, the shredder is through the operation of a number of blades, to meet the tooth shaft and achieve the cutting and crushing of materials.
