Advantages of waste motor dismantling machine
Waste motor dismantling equipment not only occupies a certain position in the recycling of industrial equipment motor, but also occupies a certain advantage in the recycling of waste household appliances. Let’s take a look at the application of waste motor dismantling equipment in the waste household appliances industry how waste household appliances occupy a certain proportion of the market in the waste recycling market, and there are great business opportunities in the process of recycling waste household appliances. According to experts in environmental protection, waste household appliances contain a large number of recyclable non-ferrous metals, ferrous metals, plastics, glass and some parts that are still valuable, etc., and their recycling has broad prospects.
In these waste electrical appliances in the motor of non-ferrous metals are very valuable resources, how to let these precious resources lost in vain?
The hydraulic copper chopper in the waste motor disassembly equipment is a kind of environmental protection equipment which can cut off the stator copper wire of the motor efficiently. The whole device is hydraulically driven. When cutting the line, the waste motor stator is supported on the support column (drum structure), the motor stator is positioned by the copper chopper positioning plate, the motor stator copper coil is controlled by the foot switch to control the cutting machine up and down, and the induction switch controls the upper and lower limit position of the cutting machine. The details are as follows:
The hydraulic copper puller in the waste motor disassembly equipment is a kind of equipment which can effectively pull out the copper wire in the stator of the motor. Before using the equipment, it is necessary to cut the copper wire at one end of the motor stator.
The principle of hydraulic copper puller is to fix the cut motor stator on the lifting platform moving up and down, positioning by the positioning block, control the up and down movement of the hydraulic cylinder through the manual switch button, lift the motor stator to the copper positioning plate, pull the copper positioning plate, limit the motor stator, and then step on the foot switch, move the pliers structure to the top, clamp the copper wire, and then step on the foot switch. The copper wire is pulled out of the stator under hydraulic action so that the copper wire and the stator core can be recovered according to the actual situation.

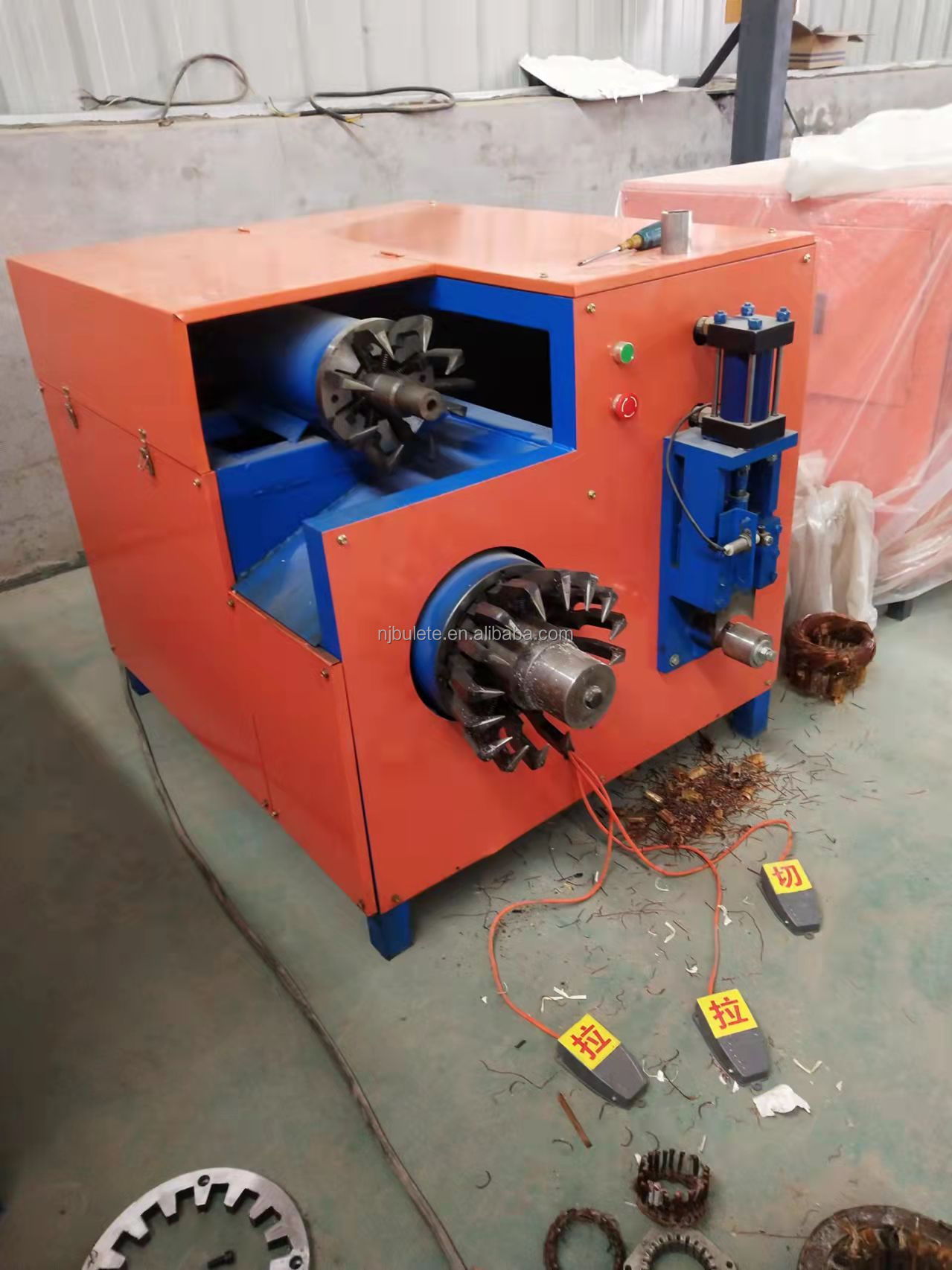

Waste motor disassembly equipment is generally divided into two sets, a set of copper chopper and a set of copper puller, both using hydraulic principle. It is mainly used to remove the copper wire and silicon steel sheet in the motor stator, cut the copper wire at one end of the stator with copper chopper, and pull out the copper wire in the motor stator from the other end. This paper introduces a copper cutting wire drawing machine, that is, copper cutting wire drawing process sharing a set of hydraulic station, the price is relatively affordable.
Application of waste motor disassembly equipment: The main purpose is to use copper chopper (cut off one end of the motor stator copper wire) with hydraulic copper puller to recover the copper wire in the motor stator.
It is used for the recovery of unqualified stator enameled wire and steel plate in motor factory. It is also widely used in some factories that specialize in recycling motor disassembly. Widely used in washing machine motor, air conditioning compressor copper wire recovery.
The whole device is hydraulically driven. When cutting thread, the waste motor stator is first supported on the support column (drum structure), and the motor stator is positioned by cutting the copper positioning plate. A foot switch controls the up and down movement of the cutting machine, the induction switch controls the upper and lower limit position of the cutting machine to cut the motor stator copper coil, the cutting motor stator is fixed on the up and down moving lifting platform, and is positioned by the positioning block. The up and down movement of the hydraulic cylinder is controlled by the manual switch button to make the motor stator rise to the drawing copper positioning plate. The stator of the motor is limited by pulling the copper positioning plate, and then the foot switch is pressed, the pliers structure is moved to clamp the copper wire, and then the foot switch is pressed, and the copper wire is pulled out of the stator under hydraulic action, so that the copper wire and the fixed value are restored to the sub-core according to the actual situation.
